How to deploy Rails/Rack app on Hetzner without Kamal/Docker with HTTPS

1. Starting a server

We will use ssh key for ssh login for our server. So first, we need to create a one:

cd ~/.ssh && ssh-keygen -f hetzner && cat hetzner.pub

Copy the contents of hetzner.pub to clipboard.

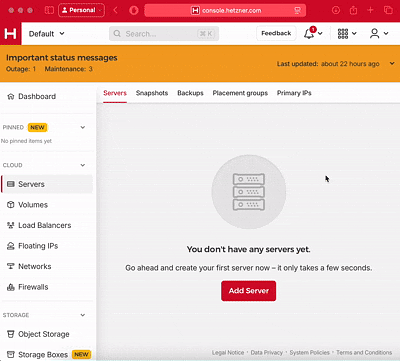

Go to console.hetzner.com, create a new project or use the Default. Select the project and go to Security → Add SSH key. Paste the content there. Next go to

Servers and start a new server. Here's an example of server configuration:

Save the server's IP address somewhere, e.g. to bash variable:

ip=5.161.217.141

2. Point DNS to the server

Consider, that it takes time for DNS updates to propagate through the internet.

We need to wait until

host sample.com

returns a correct IP address. While waiting we can do other steps.

4. Create deployer user and copy .ssh folder

Run locally:

ssh-add ~/.ssh/hetzner
ssh root@$ip

Now on the machine from the root user run

adduser --disabled-password deployer < /dev/null
cp -r ~/.ssh /home/deployer/
cd /home/deployer/
chown -R deployer:deployer .ssh

This will allow us to login without password to deployer user

5. Make deployer an admin

From the root run

sudo usermod -aG sudo deployer

and add at the bottom of the file

deployer ALL=(ALL) NOPASSWD:ALL

This gives sudo permissions to deployer without asking for password. Now relogin as a deployer:

ssh deployer@$ip

6. Install Ruby

First install rbenv:

git clone https://github.com/rbenv/rbenv.git ~/.rbenv
echo 'export PATH="$HOME/.rbenv/bin:$PATH"' >> ~/.bashrc
echo 'eval "$(rbenv init -)"' >> ~/.bashrc
source ~/.bashrc
rbenv -v

Then ruby-build

git clone https://github.com/rbenv/ruby-build.git ~/.rbenv/plugins/ruby-build

And install ruby version that you want

sudo apt install -y git curl build-essential libssl-dev libreadline-dev zlib1g-dev \
  libsqlite3-dev libyaml-dev libffi-dev libgdbm-dev libncurses5-dev \
  libncursesw5-dev libdb-dev libgmp-dev
rbenv install 3.4.5
ruby -v

7. Creating a sample app

First, let's create a sample Rails app:

rails new sample --database=postgresql
cd sample
git init
git add .
git commit -m 'initial'

And let it be a todo list app, so let's add a Task scaffold:

rails g scaffold tasks title
rails db:create db:migrate
git add .
git commit -m 'task scaffold'

Now let's add a psql password for production

EDITOR=vim  rails credentials:edit --environment production

and add this password under, e.g.

db_password: your_secure_password

and in database.yml replace password and user name to postgres:

production:
  primary: &primary_production
    <<: *default
    username: postgres
    password: <%= Rails.application.credentials.dig(:db_password) %>

Commit and push the changes

git add .
git commit -m 'db password added'

We will use Github for storing our code and pulling from remote repository to the server, so create a repository there and then push the code to it

git push origin HEAD

Go to the server and pull the repo, notice that we use -A flag to pass github ssh agent:

ssh -A deployer@$ip

Clone the repo URL into home directory

git clone $ssh_repo_url

And move this directory on /var/www (we use sudo as /var/www doesn't belong to deployer)

sudo mv sample /var/www

8. Setting up Postgres

Now upload the production key via scp from the local machine:

scp config/credentials/production.key deployer@$ip:/var/www/sample/config/credentials/

On the server run:

sudo apt update && sudo apt install -y postgresql postgresql-contrib

Create a password postgres user:

sudo -u postgres psql -c "ALTER USER postgres WITH PASSWORD 'your_secure_password';"

And change authentication method to scram-sha-256 by replacing all md5 to scram-sha-256 in this file:

sudo vim /etc/postgresql/$(ls /etc/postgresql)/main/pg_hba.conf

Restart postgres

sudo systemctl restart postgresql

Install gems and if needed the ruby version for the project

cd /var/www/sample
rbenv install $(cat .ruby-version)
bundle install

RAILS_ENV=production rails db:create db:migrate

9. Service configuration

The app will be running at 127.0.0.1:3030 and won't be accessible from the internet, but nginx will redirect all the traffic as reverse proxy.

in config/puma.rb replace

# Specifies the port that Puma will listen on to receive requests; default is 3000.
port ENV.fetch("PORT") { 3000 }

with

bind "tcp://127.0.0.1:3030"

Push the changes and pull them on the server.

Next, create a service in

sudo vim /etc/systemd/system/sample.service

with this content (change it to your own liking):

[Unit]
Description=My Sample Rails Application
After=network.target

[Service]
Type=simple
User=deployer
WorkingDirectory=/var/www/sample
Environment=RAILS_ENV=production
Environment=PATH=/home/deployer/.rbenv/shims:/home/deployer/.rbenv/bin:/usr/local/bin:/usr/bin:/bin
Environment=RBENV_ROOT=/home/deployer/.rbenv
ExecStart=/bin/bash -lc 'exec /home/deployer/.rbenv/shims/bundle exec puma -C config/puma.rb'
Restart=always
StandardOutput=append:/var/log/sample.log
StandardError=append:/var/log/sample.error.log

[Install]
WantedBy=multi-user.target

sudo systemctl enable sample

sudo systemctl start sample

From now on we can check if curl returns html:

curl 127.0.0.1:3030

10. Nginx configuration

install nginx :

sudo apt install nginx

I'll use sample.karganyan.dev as a host, use your own.

 sudo vim /etc/nginx/sites-available/sample.karganyan.dev

Insert this to the file:

server {
  server_name sample.karganyan.dev;
  listen 80;
  listen [::]:80;
  root /var/www/sample/public;
  access_log /var/log/nginx/sample.access.log;
  error_log  /var/log/nginx/sample.error.log;
  location / {
    proxy_pass http://127.0.0.1:3030;
    proxy_set_header Host $host;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header X-Forwarded-Proto $scheme;
    proxy_set_header X-Forwarded-Ssl on; # needed if SSL is added later
    proxy_redirect off;
  }
  location ~ ^/(assets|packs|uploads)/ {
    expires max;
    add_header Cache-Control public;
  }
  error_page 500 502 503 504 /500.html;
  client_max_body_size 50M;
  keepalive_timeout 10;

}

Install certbot

sudo apt install certbot python3-certbot-nginx -y

Delete default nginx file

sudo rm /etc/nginx/sites-enabled/default

Replace with your host

sudo certbot --nginx -d sample.karganyan.dev

Restart nginx

sudo nginx -t

sudo systemctl reload nginx

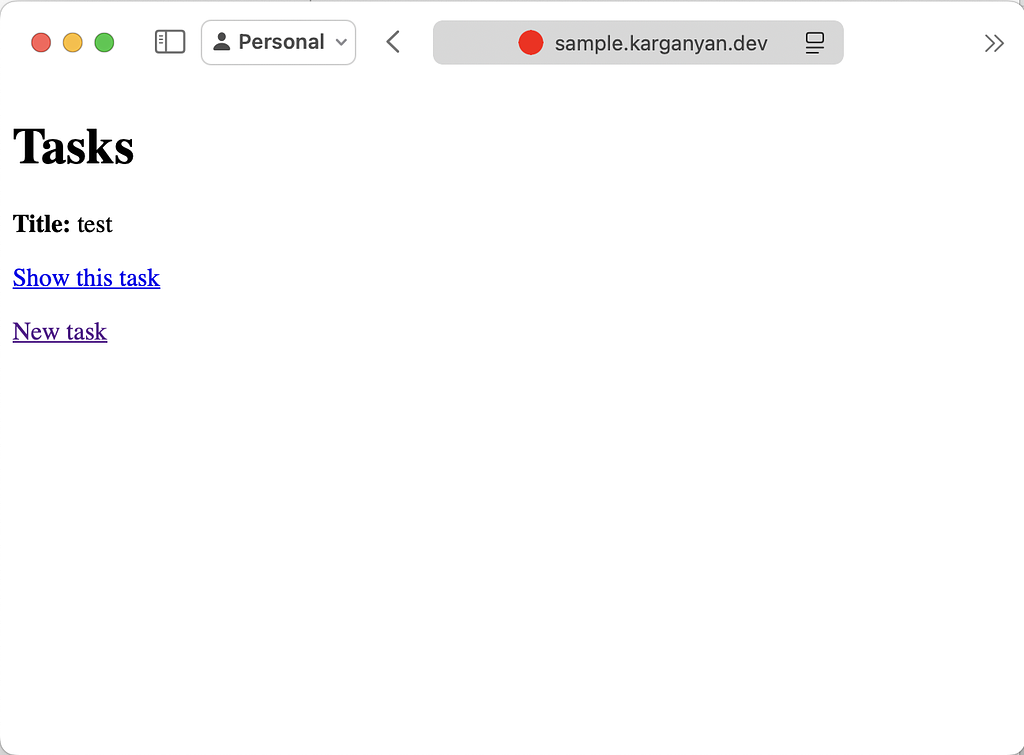

Go to your host and the site should work now.

11. Redeployment

to redeploy use

git push && ssh -A deployer$ip "cd /var/www/sample && git pull && PATH=/home/deployer/.rbenv/shims:/home/deployer/.rbenv/bin:/usr/local/bin:/usr/bin:/bin && RAILS_ENV=production bin/rails db:migrate && sudo systemctl restart sample"
